Description:

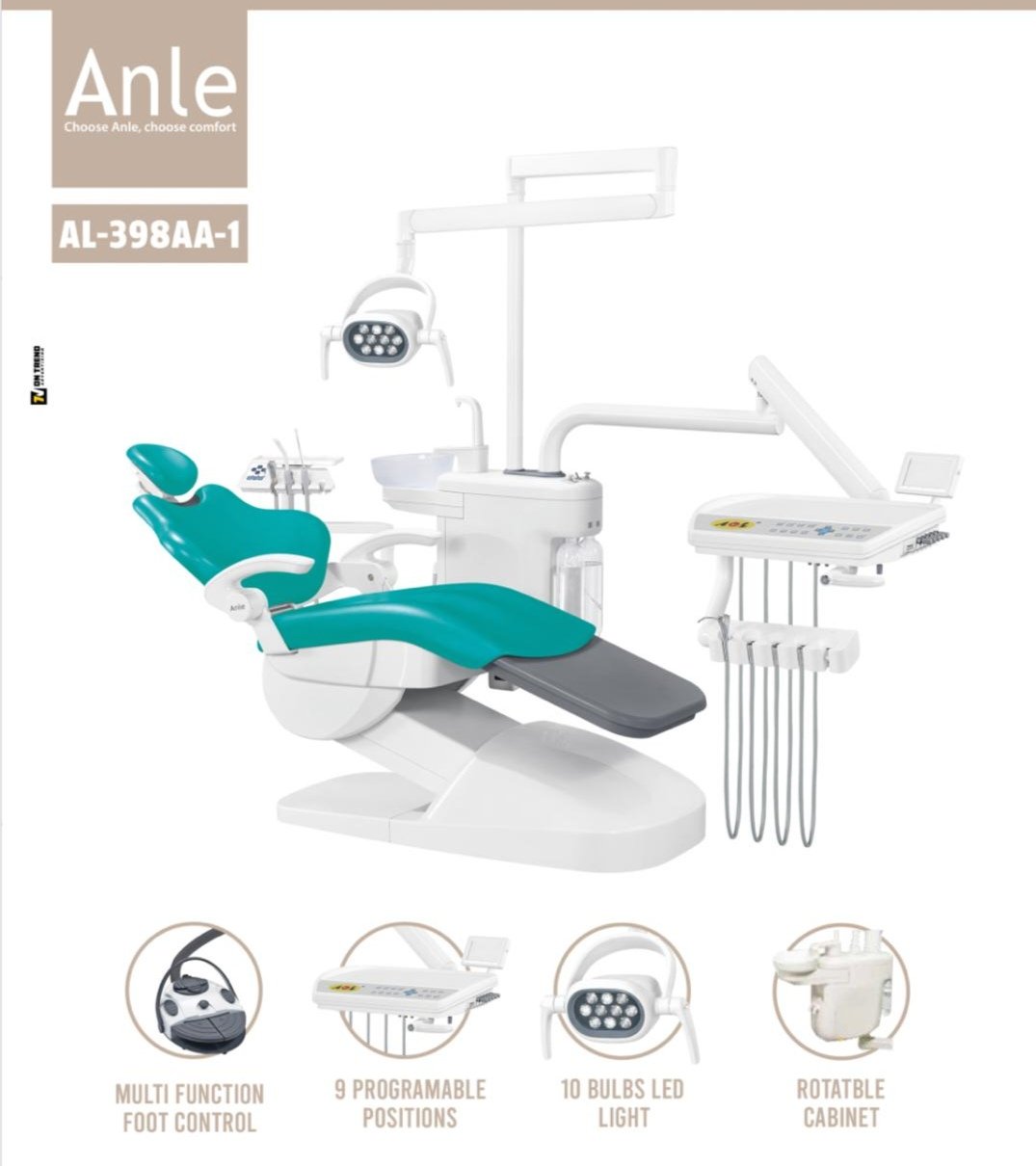

Patient Chair:
Lowest Position: 430mm, Highest Position: 720mm
Weight Capacity: >135kg (excluding dental unit)
Lift Speed: ≥15mm/s, smooth and reliable.
Seat Cushion Tilt Angle: ≤ 10°
Seat Back Adjustable Angle: 0°–70°
Telescopic Adjustable Headrest: Length ≤120mm, forward inclination 20°, backward inclination 40°
Noise Level: ≤45db, featuring a high-quality silent DC motor for safety.
Control: Foot or hand control for 4-direction motion, microcomputer system with reset function and PLC control.
Dental Unit:
Full Computer Control & Operation Panel: Allows easy operation and prevents incorrect use.
Chair Positioning Control: Raises, lowers, reclines, and adjusts the backrest.
LED Cold Light Control: On/off and intensity control via manual rotary switch or infrared sensor.
Water Heater & Flow Control: Manually controlled for precise water flow during procedures.
Rotatable Unit Box: Rotates 45° for easy access and efficient cleaning.
Water Purification System: Provides clean water for handpieces with an easy-to-use adjusting switch.
Dual Water Storage Tanks: Supports quick switching between water sources.
Low-Mounted Instrument Tray:
Configurations:
Instrument tray x1
Panoramic X-ray film viewer x1
High-speed 4-hole handpiece x2
Low-speed 4-hole handpiece x1
3-way syringe x1
Movable Tray: Flexible and adjustable for optimal positioning.
Water and Air Valve: Below the tray for controlling spray flow.
Assistant Tray:
Configurations:
Strong & weak suction saliva ejector x1
Easy-to-use control system for spittoon, water supply, heating, and chair motion.
LED Dental Light:
10 Bulb System (Dual Control): Infrared sensor switch for light control and button for adjusting light color.
Brightness: Low ≤8000Lx, High ≥20000Lx
Color Temperature: 5000-6000K
LED X-ray Film Viewer:
Illumination Intensity: ≥2200Lx
Rotating Spittoon:
Features: High temperature resistance, easy to clean, and disassemble.
Water Flow Rate: ≥4.5L/min
Operating Stool:
Model: 338A
Adjustable Height: Lifting range 130mm
Weight Capacity: 155kg
Surface Material: Seamless PU leather for comfort, stain resistance, and easy cleaning.
